Fire Department Apparatus

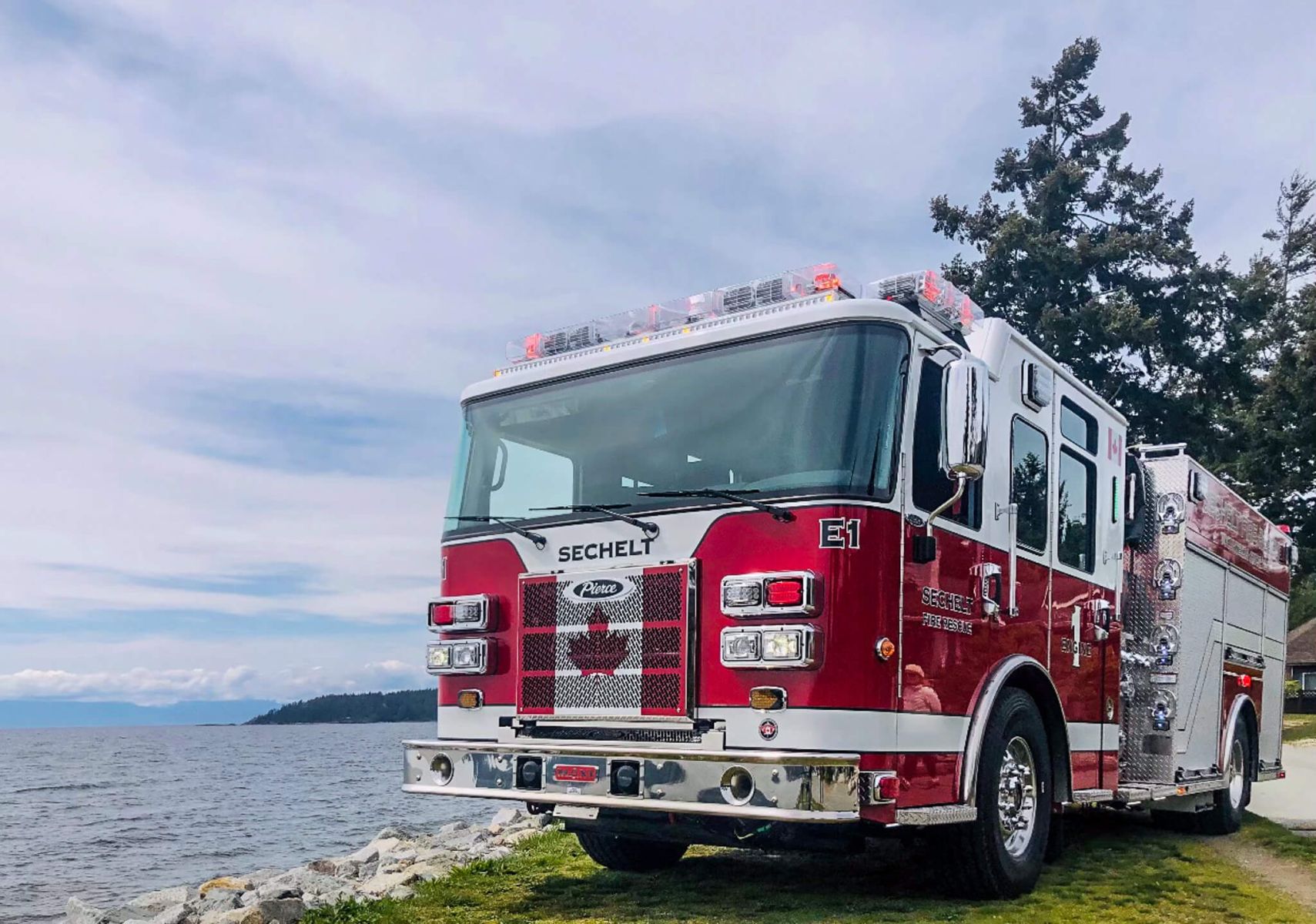

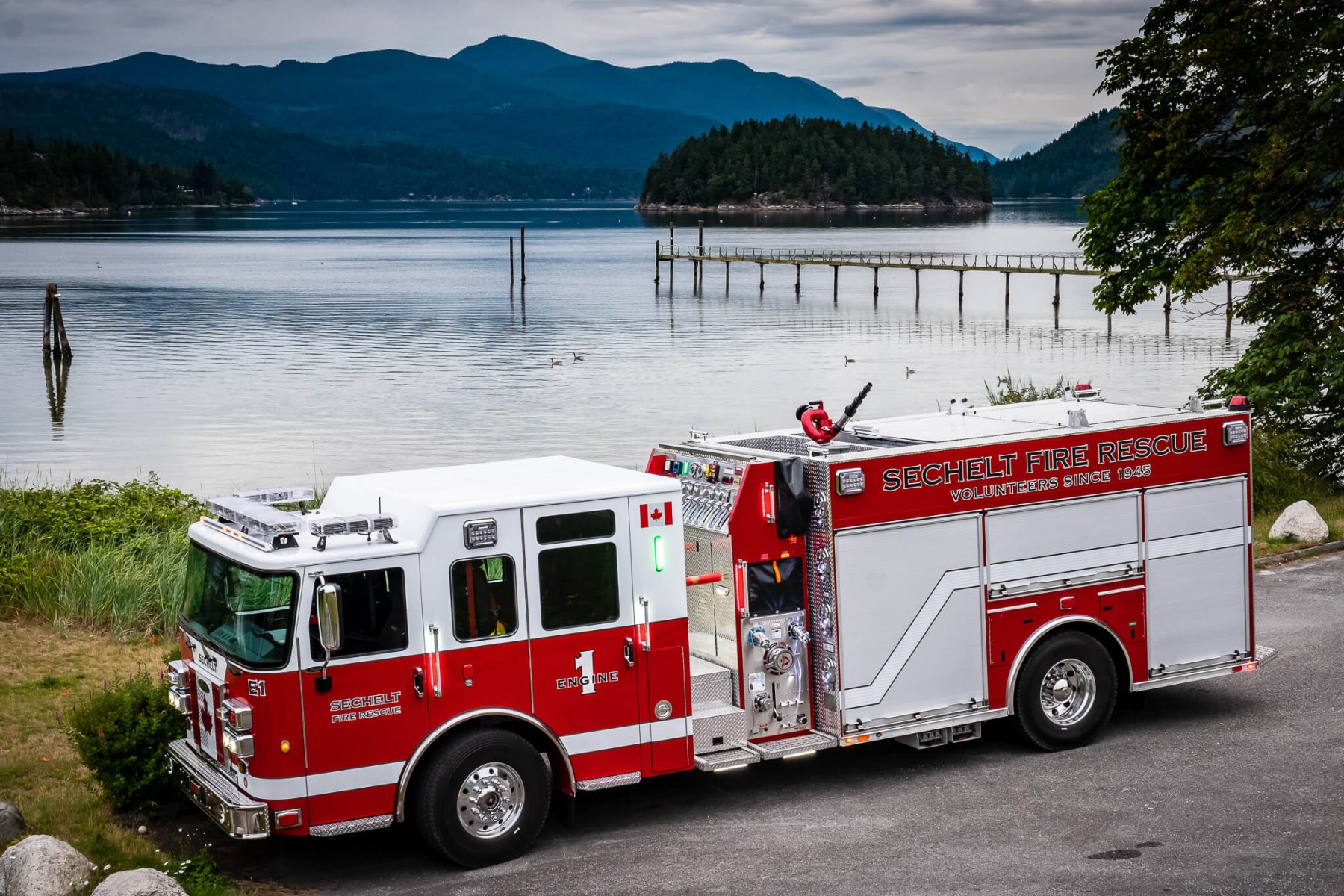

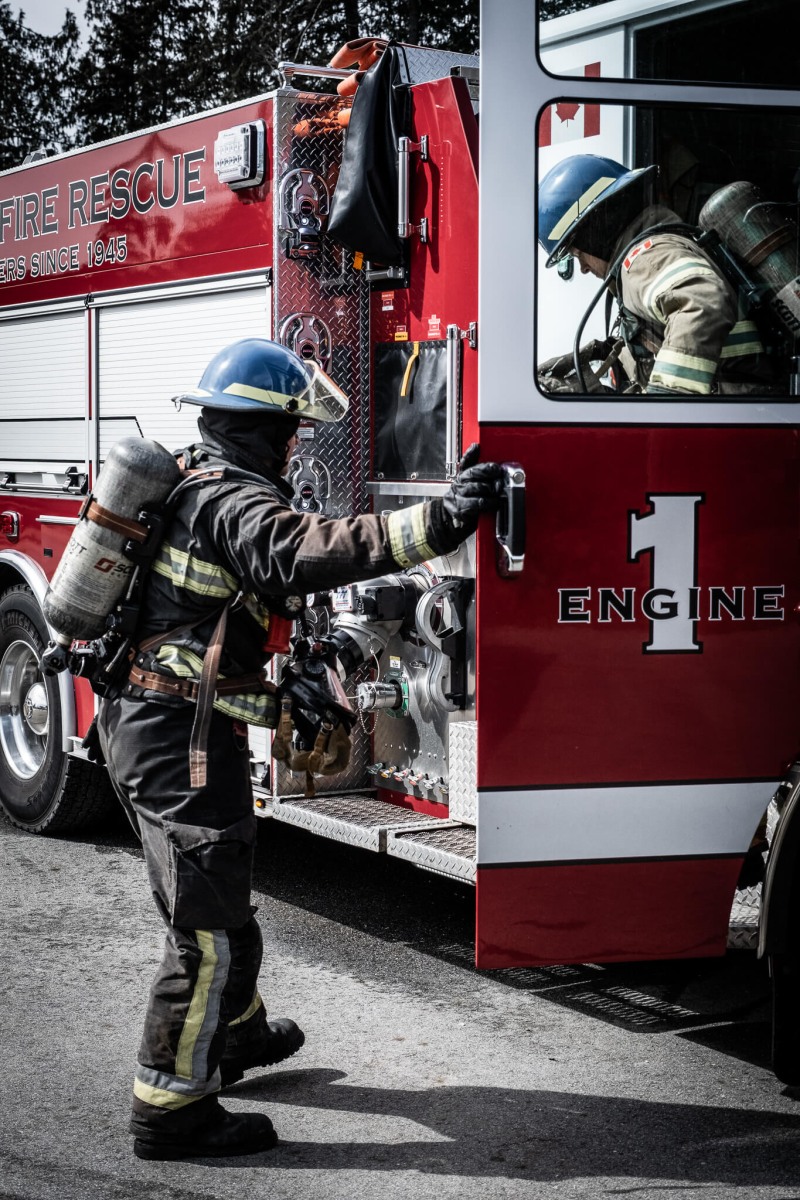

Engine 1 – Main Engine

2019 Pierce MaxiSaber FR

SPECIFICATIONS:

  • Engine: Cummins L9 (450HP @ 2200RPM)
  • Trans: Allison EVS3000
  • Pump: Waterous CX 1500GPM @ 150psi with FoamPro 2001 injection
  • Capacity: 750 igal
  • GVWR: 42,000 lbs / 19,051 kgs

SPECIAL FEATURES:

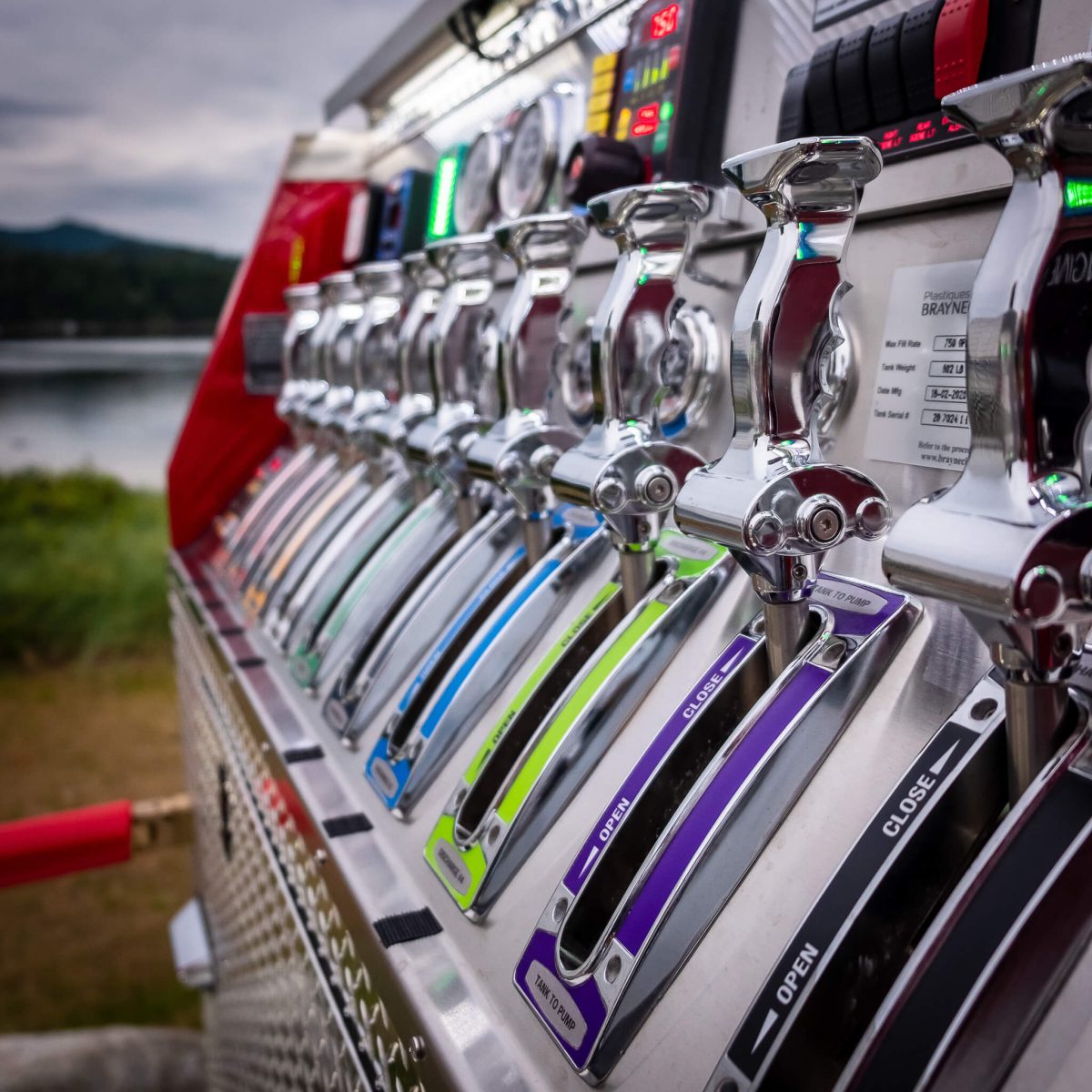

  • Transverse pump panel
  • Insta-chains
  • Auto-extrication and Medical gear

MAIN USE:

  • First-due apparatus to most call-types
  • Multi-role Engine

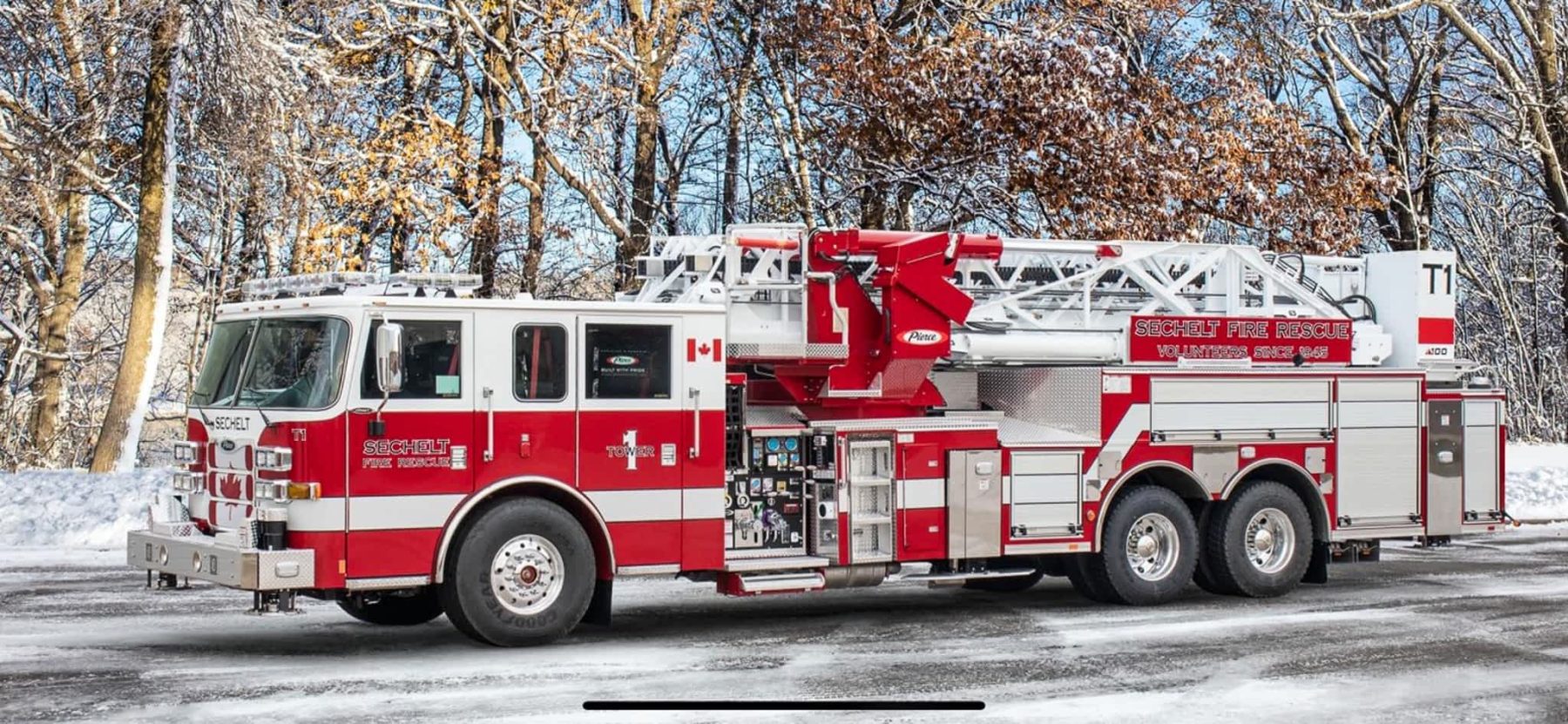

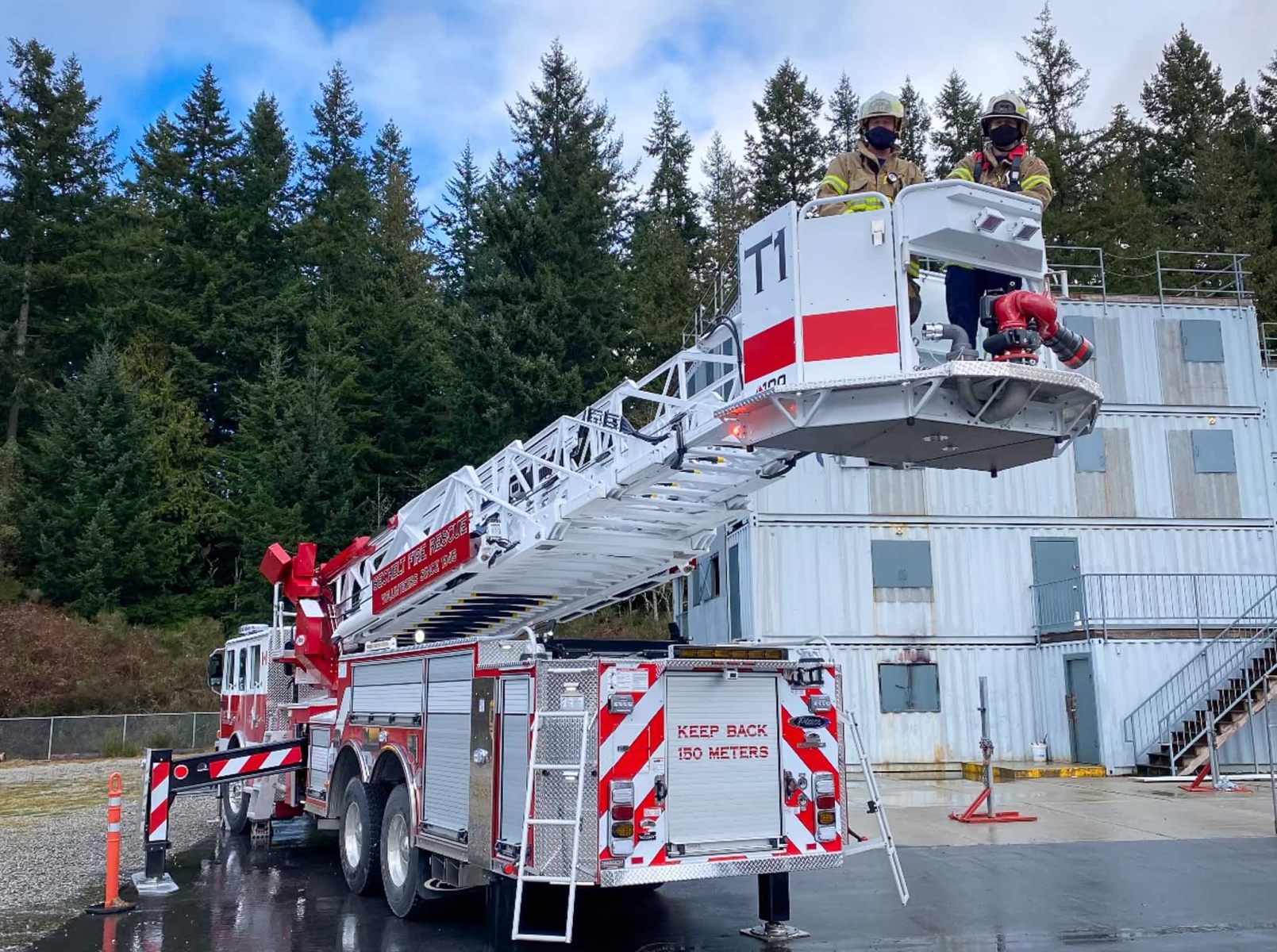

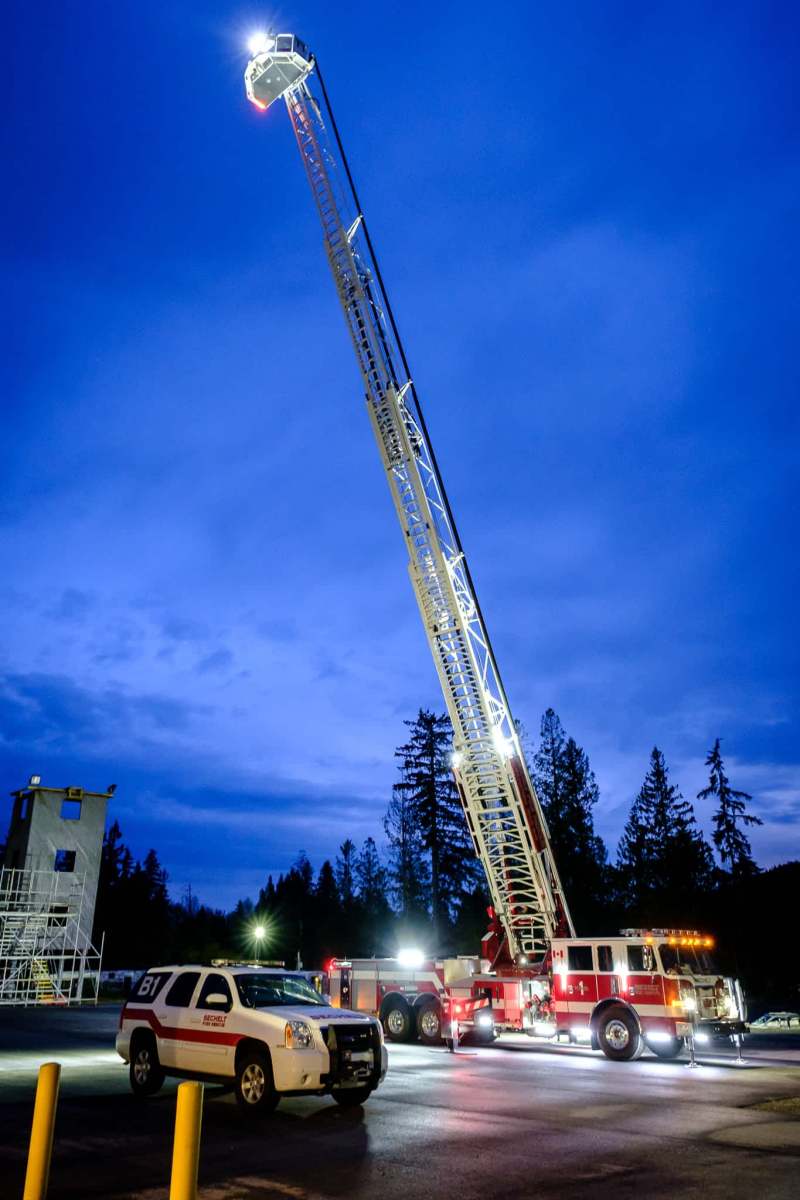

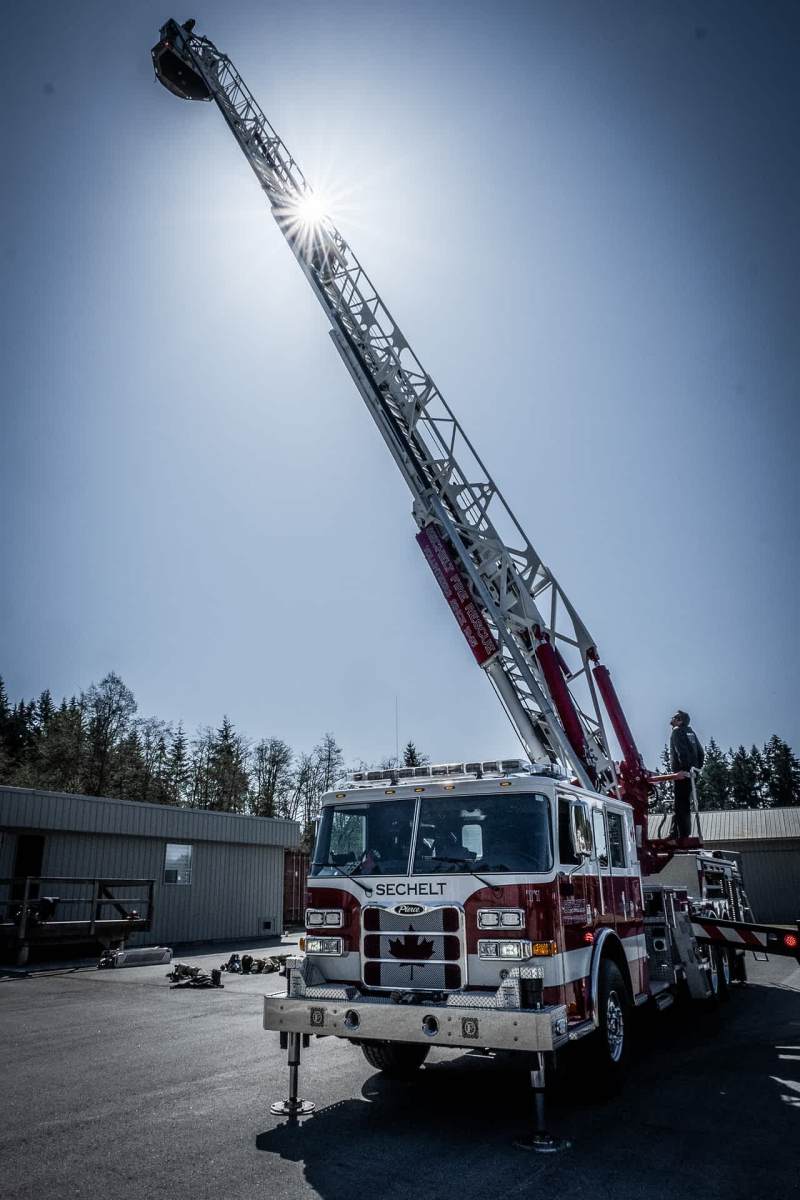

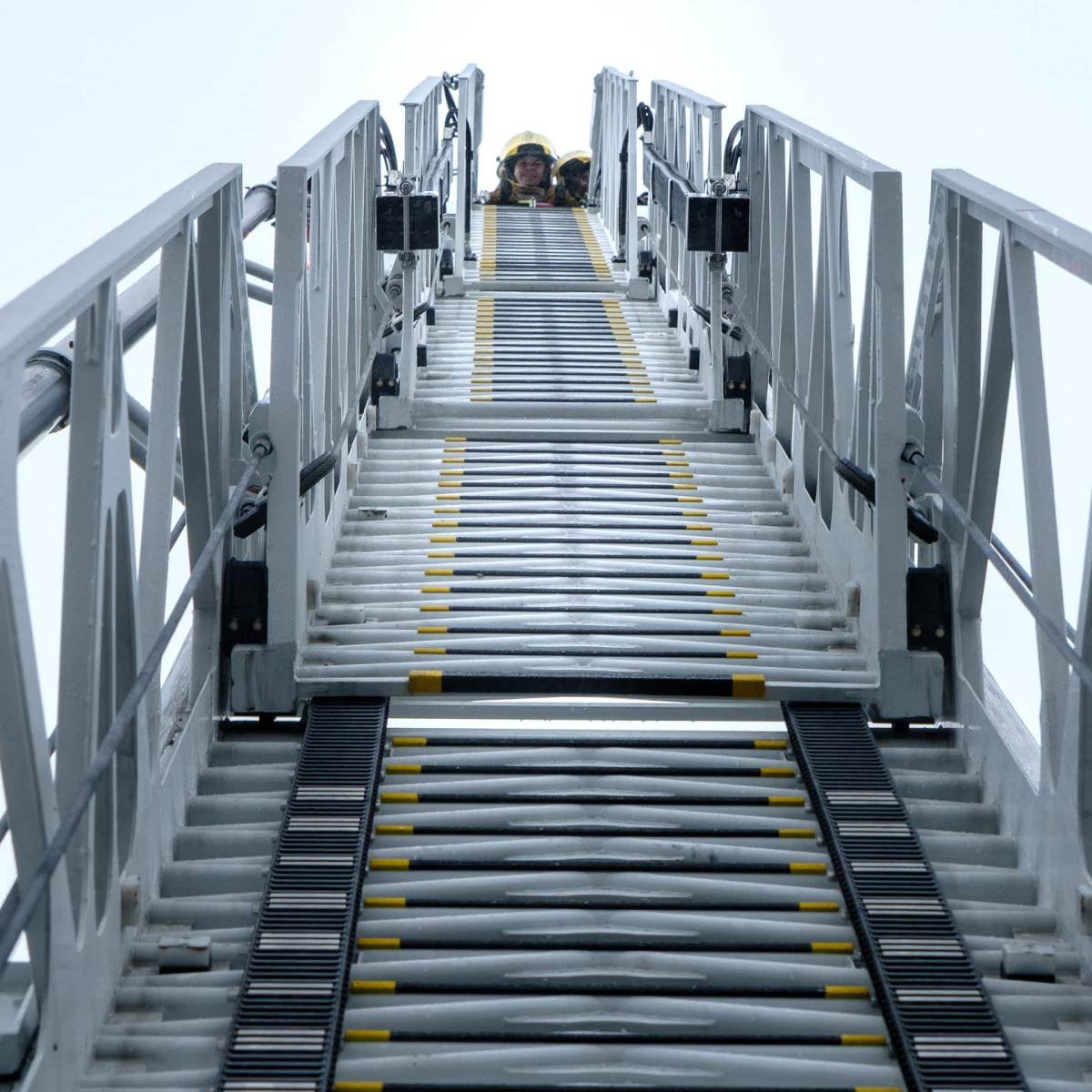

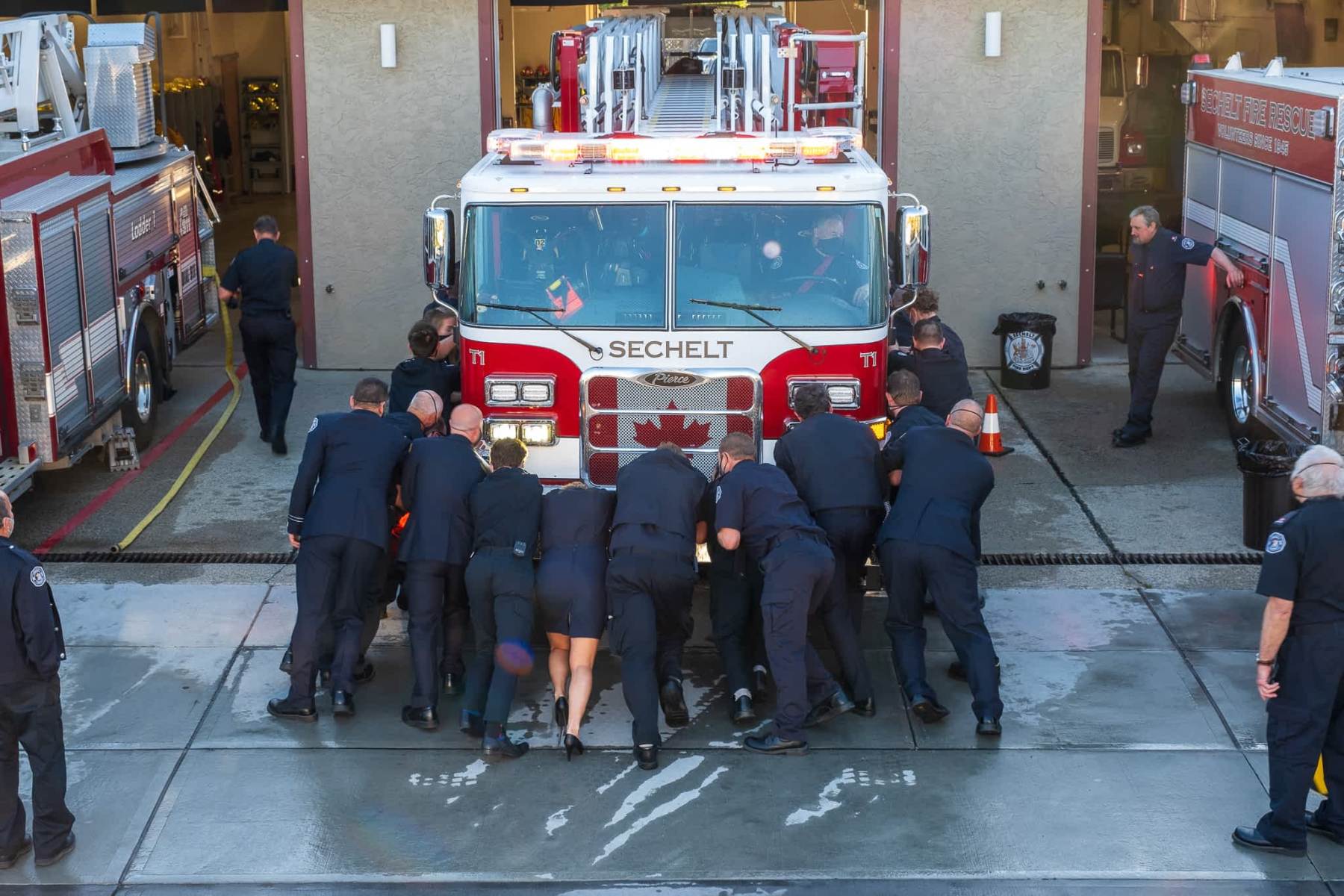

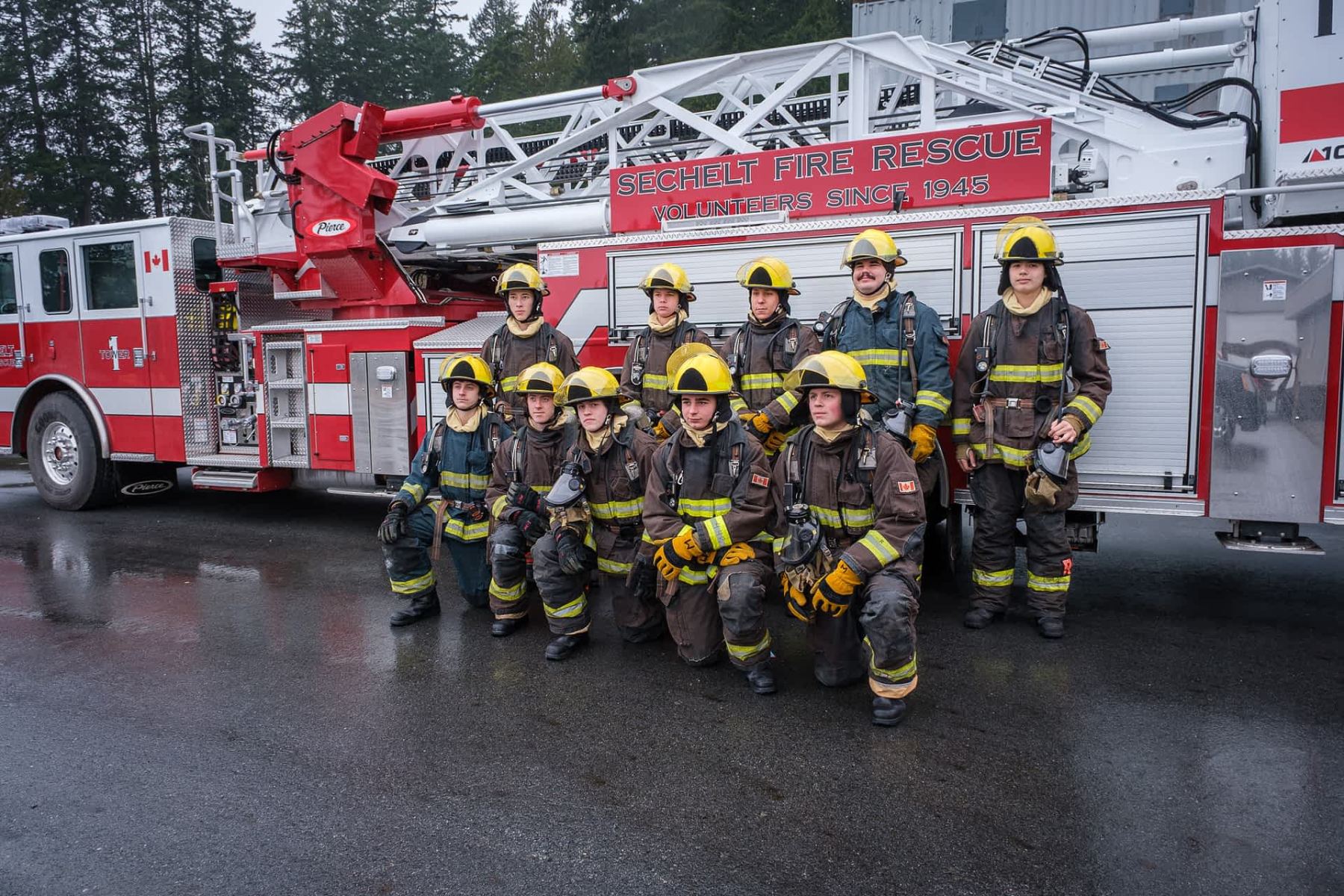

Tower 1 – Mid-Mount Platform

2020 Pierce Arrow XT Ascendant 100

SPECIFICATIONS:

  • Engine: DD13 12.8L I6 450HP @ 1300 RPM
  • Trans: Allison 4500EVS
  • Pump: Waterous 2000GPM @ 150psi
  • Capacity: 248 igal
  • GVWR: 75,000 lbs / 34,019 kgs

SPECIAL FEATURES:

  • Mid-mount aerial
  • Shortest 100′ platform in production
  • Can set the platform on the ground

MAIN USE:

  • Elevated master streams
  • High-angle rescue
  • Roof operations

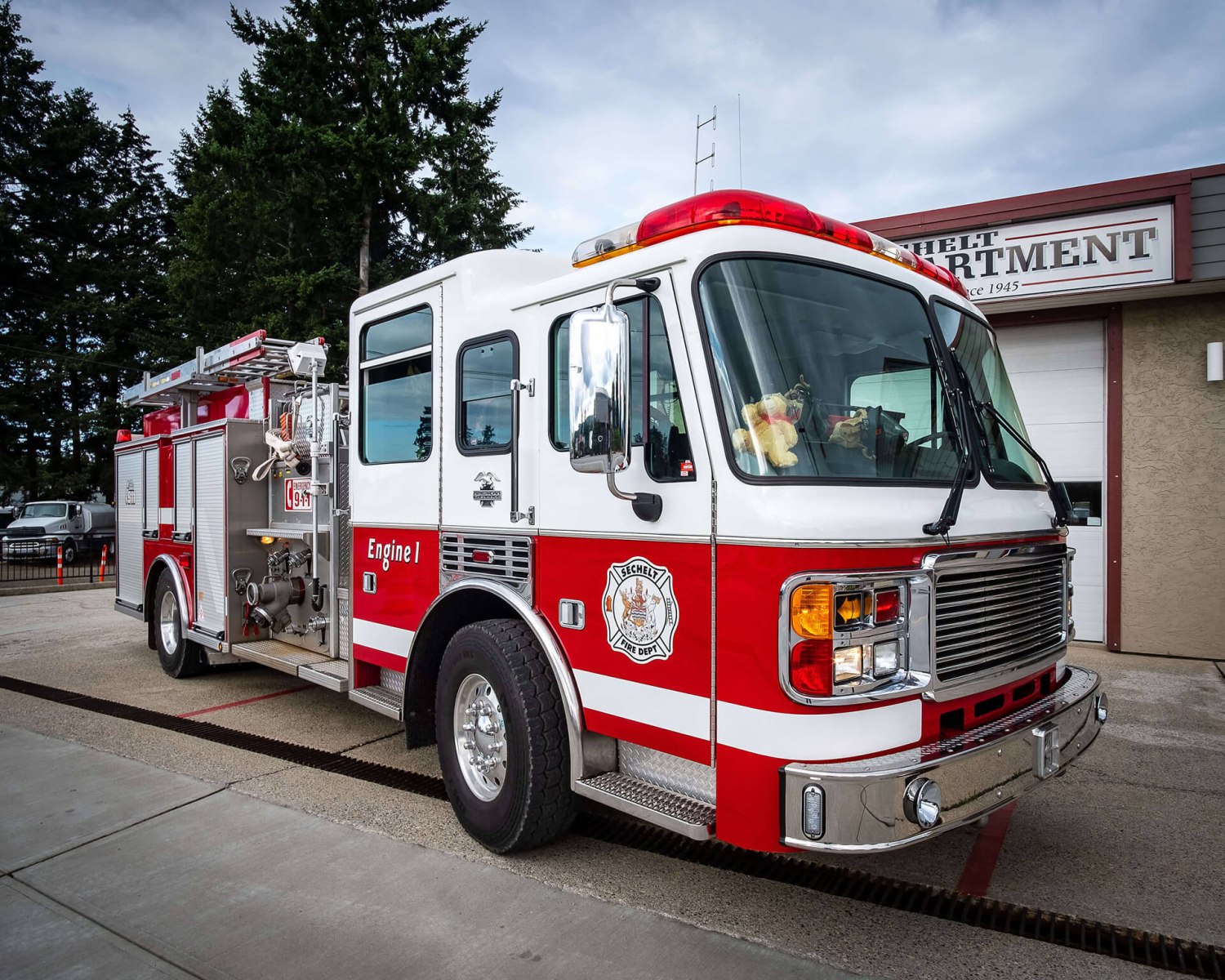

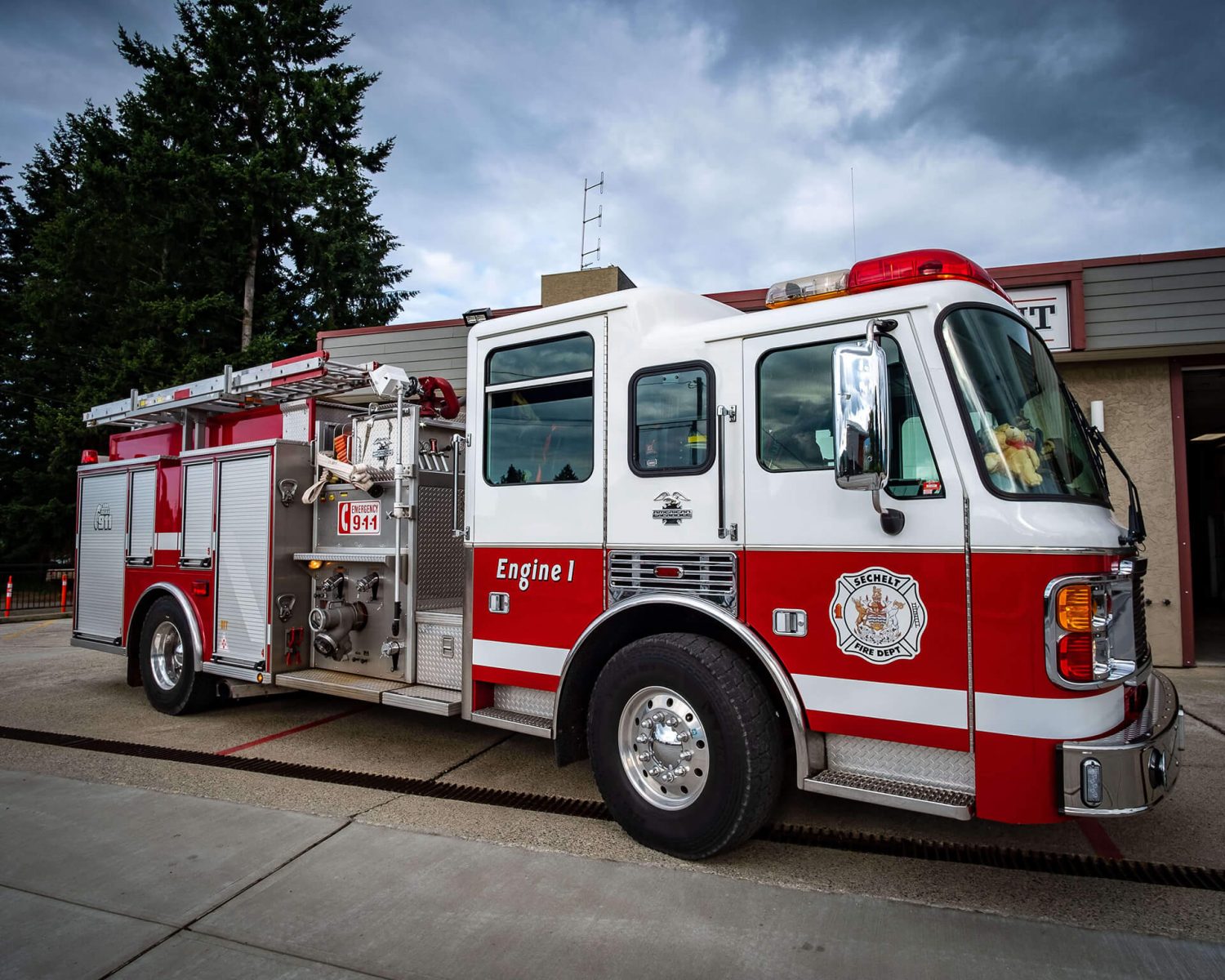

Engine 1-2 – Reserve Engine

2001 American LaFrance Eagle 134

SPECIFICATIONS:

  • Engine: Detroit 60 Series 430HP @ 1200 RPM
  • Trans: Allison 1000
  • Pump: HALE ALFS175 1500 GPM @ 150 PSI
  • Capacity: 1000 igal
  • GVWR: 42,000 lbs / 19,051 kgs

SPECIAL FEATURES:

  • Mid-ship pump
  • Shuttle capability
  • Insta-chains

MAIN USE:

  • Second-due engine
  • Supply Tower-1
  • Relay operations
